支持个人资料架构的聊天机器人¶

# TypedDict instance
user_profile: UserProfile = {
    "user_name": "Lance",
    "interests": ["biking", "technology", "coffee"]
}
user_profile

# Search
for m in in_memory_store.search(namespace_for_memory):
    print(m.dict())

# Get the memory by namespace and key
profile = in_memory_store.get(namespace_for_memory, "user_profile")
profile.value

from pydantic import BaseModel, Field

from langchain_core.messages import HumanMessage
from langchain_openai import ChatOpenAI

# Initialize the model
model = ChatOpenAI(model="gpt-4o", temperature=0)

# Bind schema to model
model_with_structure = model.with_structured_output(UserProfile)

# Invoke the model to produce structured output that matches the schema
structured_output = model_with_structure.invoke([HumanMessage("My name is Lance, I like to bike.")])
structured_output

from IPython.display import Image, display

from langgraph.checkpoint.memory import MemorySaver
from langgraph.graph import StateGraph, MessagesState, START, END
from langgraph.store.base import BaseStore

from langchain_core.messages import HumanMessage, SystemMessage, AIMessage
from langchain_core.runnables.config import RunnableConfig

# Chatbot instruction
MODEL_SYSTEM_MESSAGE = """You are a helpful assistant with memory that provides information about the user.
If you have memory for this user, use it to personalize your responses.
Here is the memory (it may be empty): {memory}"""

# Create new memory from the chat history and any existing memory
CREATE_MEMORY_INSTRUCTION = """Create or update a user profile memory based on the user's chat history.
This will be saved for long-term memory. If there is an existing memory, simply update it.
Here is the existing memory (it may be empty): {memory}"""

def call_model(state: MessagesState, config: RunnableConfig, store: BaseStore):

    """Load memory from the store and use it to personalize the chatbot's response."""

    # Get the user ID from the config
    user_id = config["configurable"]["user_id"]

    # Retrieve memory from the store
    namespace = ("memory", user_id)
    existing_memory = store.get(namespace, "user_memory")

    # Format the memories for the system prompt
    if existing_memory and existing_memory.value:
        memory_dict = existing_memory.value
        formatted_memory = (
            f"Name: {memory_dict.get('user_name', 'Unknown')}\n"
            f"Interests: {', '.join(memory_dict.get('interests', []))}"
        )
    else:
        formatted_memory = None

    # Format the memory in the system prompt
    system_msg = MODEL_SYSTEM_MESSAGE.format(memory=formatted_memory)

    # Respond using memory as well as the chat history
    response = model.invoke([SystemMessage(content=system_msg)]+state["messages"])

    return {"messages": response}

def write_memory(state: MessagesState, config: RunnableConfig, store: BaseStore):

    """Reflect on the chat history and save a memory to the store."""

    # Get the user ID from the config
    user_id = config["configurable"]["user_id"]

    # Retrieve existing memory from the store
    namespace = ("memory", user_id)
    existing_memory = store.get(namespace, "user_memory")

    # Format the memories for the system prompt
    if existing_memory and existing_memory.value:
        memory_dict = existing_memory.value
        formatted_memory = (
            f"Name: {memory_dict.get('user_name', 'Unknown')}\n"
            f"Interests: {', '.join(memory_dict.get('interests', []))}"
        )
    else:
        formatted_memory = None

    # Format the existing memory in the instruction
    system_msg = CREATE_MEMORY_INSTRUCTION.format(memory=formatted_memory)

    # Invoke the model to produce structured output that matches the schema
    new_memory = model_with_structure.invoke([SystemMessage(content=system_msg)]+state['messages'])

    # Overwrite the existing use profile memory
    key = "user_memory"
    store.put(namespace, key, new_memory)

# Define the graph
builder = StateGraph(MessagesState)
builder.add_node("call_model", call_model)
builder.add_node("write_memory", write_memory)
builder.add_edge(START, "call_model")
builder.add_edge("call_model", "write_memory")
builder.add_edge("write_memory", END)

# Store for long-term (across-thread) memory
across_thread_memory = InMemoryStore()

# Checkpointer for short-term (within-thread) memory
within_thread_memory = MemorySaver()

# Compile the graph with the checkpointer fir and store
graph = builder.compile(checkpointer=within_thread_memory, store=across_thread_memory)

# View
display(Image(graph.get_graph(xray=1).draw_mermaid_png()))

# We supply a thread ID for short-term (within-thread) memory
# We supply a user ID for long-term (across-thread) memory
config = {"configurable": {"thread_id": "1", "user_id": "1"}}

# User input
input_messages = [HumanMessage(content="Hi, my name is Lance and I like to bike around San Francisco and eat at bakeries.")]

# Run the graph
for chunk in graph.stream({"messages": input_messages}, config, stream_mode="values"):
    chunk["messages"][-1].pretty_print()

# Namespace for the memory to save
user_id = "1"
namespace = ("memory", user_id)
existing_memory = across_thread_memory.get(namespace, "user_memory")
existing_memory.value

from pydantic import ValidationError

# Bind schema to model
model_with_structure = model.with_structured_output(TelegramAndTrustFallPreferences)

# Conversation
conversation = """Operator: How may I assist with your telegram, sir?
Customer: I need to send a message about our trust fall exercise.
Operator: Certainly. Morse code or standard encoding?
Customer: Morse, please. I love using a straight key.
Operator: Excellent. What's your message?
Customer: Tell him I'm ready for a higher fall, and I prefer the diamond formation for catching.
Operator: Done. Shall I use our "Daredevil" paper for this daring message?
Customer: Perfect! Send it by your fastest carrier pigeon.
Operator: It'll be there within the hour, sir."""

# Invoke the model
try:
    model_with_structure.invoke(f"""Extract the preferences from the following conversation:
    <convo>
    {conversation}
    </convo>""")
except ValidationError as e:
    print(e)

for m in result["messages"]:
    m.pretty_print()

schema = result["responses"]
schema

schema[0].model_dump()

result["response_metadata"]

for m in result["messages"]:
    m.pretty_print()

result["response_metadata"]

updated_schema = result["responses"][0]
updated_schema.model_dump()

bound = create_extractor(
    model,
    tools=[TelegramAndTrustFallPreferences],
    tool_choice="TelegramAndTrustFallPreferences",
)

# Conversation
conversation = """Operator: How may I assist with your telegram, sir?
Customer: I need to send a message about our trust fall exercise.
Operator: Certainly. Morse code or standard encoding?
Customer: Morse, please. I love using a straight key.
Operator: Excellent. What's your message?
Customer: Tell him I'm ready for a higher fall, and I prefer the diamond formation for catching.
Operator: Done. Shall I use our "Daredevil" paper for this daring message?
Customer: Perfect! Send it by your fastest carrier pigeon.
Operator: It'll be there within the hour, sir."""

result = bound.invoke(
    f"""Extract the preferences from the following conversation:
<convo>
{conversation}
</convo>"""
)

# Extract the preferences
result["responses"][0]

from IPython.display import Image, display

from langchain_core.messages import HumanMessage, SystemMessage
from langgraph.graph import StateGraph, MessagesState, START, END
from langchain_core.runnables.config import RunnableConfig
from langgraph.checkpoint.memory import MemorySaver
from langgraph.store.base import BaseStore

# Initialize the model
model = ChatOpenAI(model="gpt-4o", temperature=0)

# Schema
class UserProfile(BaseModel):
    """ Profile of a user """
    user_name: str = Field(description="The user's preferred name")
    user_location: str = Field(description="The user's location")
    interests: list = Field(description="A list of the user's interests")

# Create the extractor
trustcall_extractor = create_extractor(
    model,
    tools=[UserProfile],
    tool_choice="UserProfile", # Enforces use of the UserProfile tool
)

# Chatbot instruction
MODEL_SYSTEM_MESSAGE = """You are a helpful assistant with memory that provides information about the user.
If you have memory for this user, use it to personalize your responses.
Here is the memory (it may be empty): {memory}"""

# Extraction instruction
TRUSTCALL_INSTRUCTION = """Create or update the memory (JSON doc) to incorporate information from the following conversation:"""

def call_model(state: MessagesState, config: RunnableConfig, store: BaseStore):

    """Load memory from the store and use it to personalize the chatbot's response."""

    # Get the user ID from the config
    user_id = config["configurable"]["user_id"]

    # Retrieve memory from the store
    namespace = ("memory", user_id)
    existing_memory = store.get(namespace, "user_memory")

    # Format the memories for the system prompt
    if existing_memory and existing_memory.value:
        memory_dict = existing_memory.value
        formatted_memory = (
            f"Name: {memory_dict.get('user_name', 'Unknown')}\n"
            f"Location: {memory_dict.get('user_location', 'Unknown')}\n"
            f"Interests: {', '.join(memory_dict.get('interests', []))}"
        )
    else:
        formatted_memory = None

    # Format the memory in the system prompt
    system_msg = MODEL_SYSTEM_MESSAGE.format(memory=formatted_memory)

    # Respond using memory as well as the chat history
    response = model.invoke([SystemMessage(content=system_msg)]+state["messages"])

    return {"messages": response}

def write_memory(state: MessagesState, config: RunnableConfig, store: BaseStore):

    """Reflect on the chat history and save a memory to the store."""

    # Get the user ID from the config
    user_id = config["configurable"]["user_id"]

    # Retrieve existing memory from the store
    namespace = ("memory", user_id)
    existing_memory = store.get(namespace, "user_memory")

    # Get the profile as the value from the list, and convert it to a JSON doc
    existing_profile = {"UserProfile": existing_memory.value} if existing_memory else None

    # Invoke the extractor
    result = trustcall_extractor.invoke({"messages": [SystemMessage(content=TRUSTCALL_INSTRUCTION)]+state["messages"], "existing": existing_profile})

    # Get the updated profile as a JSON object
    updated_profile = result["responses"][0].model_dump()

    # Save the updated profile
    key = "user_memory"
    store.put(namespace, key, updated_profile)

# Define the graph
builder = StateGraph(MessagesState)
builder.add_node("call_model", call_model)
builder.add_node("write_memory", write_memory)
builder.add_edge(START, "call_model")
builder.add_edge("call_model", "write_memory")
builder.add_edge("write_memory", END)

# Store for long-term (across-thread) memory
across_thread_memory = InMemoryStore()

# Checkpointer for short-term (within-thread) memory
within_thread_memory = MemorySaver()

# Compile the graph with the checkpointer fir and store
graph = builder.compile(checkpointer=within_thread_memory, store=across_thread_memory)

# View
display(Image(graph.get_graph(xray=1).draw_mermaid_png()))

# We supply a thread ID for short-term (within-thread) memory
# We supply a user ID for long-term (across-thread) memory
config = {"configurable": {"thread_id": "1", "user_id": "1"}}

# User input
input_messages = [HumanMessage(content="Hi, my name is Lance")]

# Run the graph
for chunk in graph.stream({"messages": input_messages}, config, stream_mode="values"):
    chunk["messages"][-1].pretty_print()

# User input
input_messages = [HumanMessage(content="I like to bike around San Francisco")]

# Run the graph
for chunk in graph.stream({"messages": input_messages}, config, stream_mode="values"):
    chunk["messages"][-1].pretty_print()

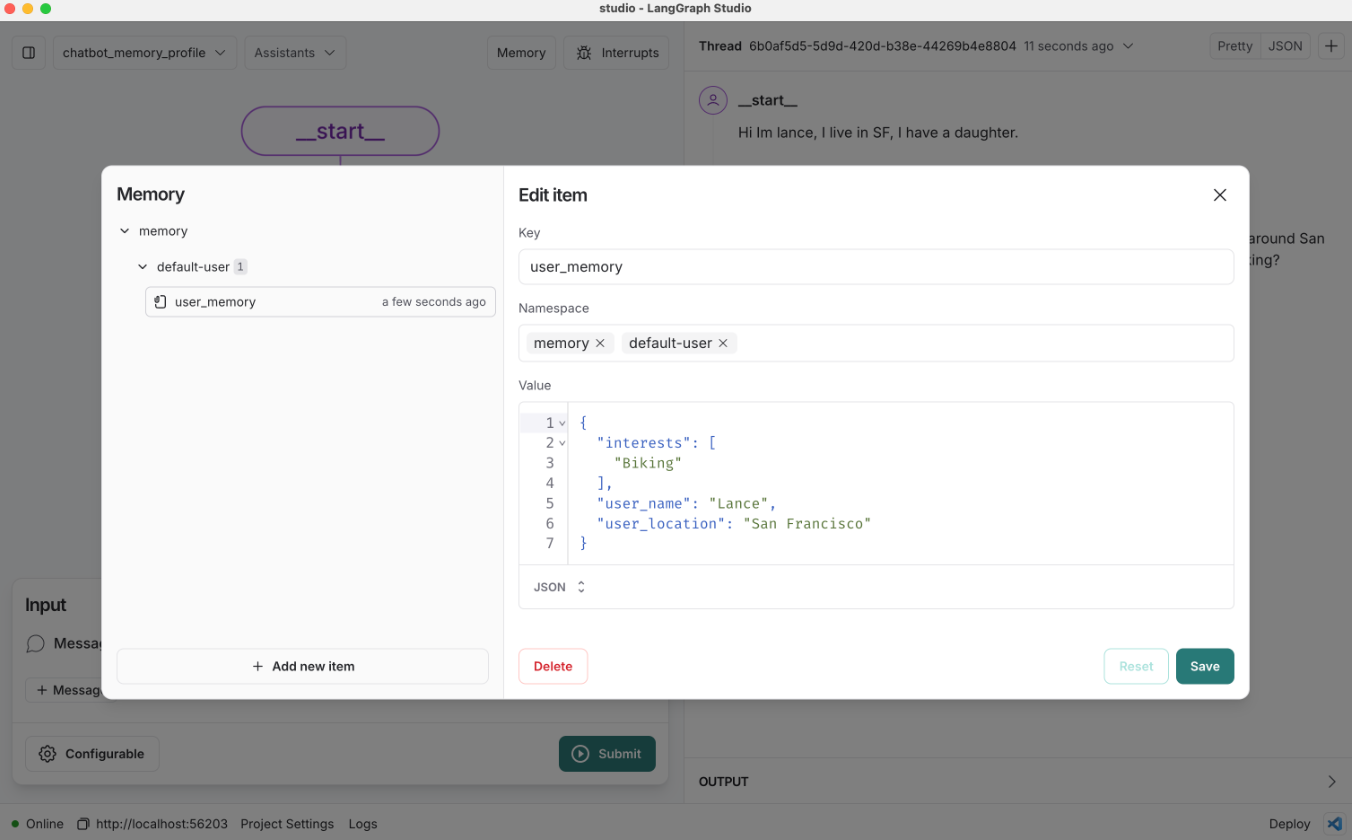

# Namespace for the memory to save
user_id = "1"
namespace = ("memory", user_id)
existing_memory = across_thread_memory.get(namespace, "user_memory")
existing_memory.dict()

# The user profile saved as a JSON object
existing_memory.value

# User input
input_messages = [HumanMessage(content="I also enjoy going to bakeries")]

# Run the graph
for chunk in graph.stream({"messages": input_messages}, config, stream_mode="values"):
    chunk["messages"][-1].pretty_print()

# We supply a thread ID for short-term (within-thread) memory
# We supply a user ID for long-term (across-thread) memory
config = {"configurable": {"thread_id": "2", "user_id": "1"}}

# User input
input_messages = [HumanMessage(content="What bakeries do you recommend for me?")]

# Run the graph
for chunk in graph.stream({"messages": input_messages}, config, stream_mode="values"):
    chunk["messages"][-1].pretty_print()
